Fanless Industrial PC with 6*RS232/485 and 8*USB Ports Featuring Intel Core i5 4200U Processor

Fanless Industrial PC with 6RS232/485 and 8USB Ports Featuring Intel Core i5 4200U Processor

Merknaam:	HLY
MOQ:	1

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

CPU-opties:

J1900, 2955U, 3805U, i3 4010U, i5 4200U, i7 4500U, i7 5500U

RAM -type:

1 x DDR3L (laagspanning 1,35 V)

RAM Snelheid:

1333/1600 MHz

Harde schijf:

1x mSATA + 1 x 2,5 inch SSD

WIFI-sleuf:

1x mPCIe (halve grootte)

Vertoningshavens:

HD + VGA

USB -poorten:

6 of 8 x USB

LAN -poorten:

2 x Gigabit Ethernet

Com-havens:

6 x RS232/485

Afmetingen:

235 x 137 x 51 mm

Power Input:

12V, 5A

Bedrijfstemperatuur:

-20 ° C tot 80 ° C

Opslagtemperatuur:

0°C aan 80°C

Relatieve vochtigheid:

(Non-condensing) 10%~90%

Koelsysteem:

Fanless

Markeren:

6*RS232/485 Industrial PC

8*USB Industrial Mini Computer

Intel Core i5 4200U Fanless IPC

Productomschrijving

Fanless Industrial PC Computer J1900 Core I5 4200U I7 Win7 Win10 Ubuntu

Premium Fanless Industrial Mini Computer

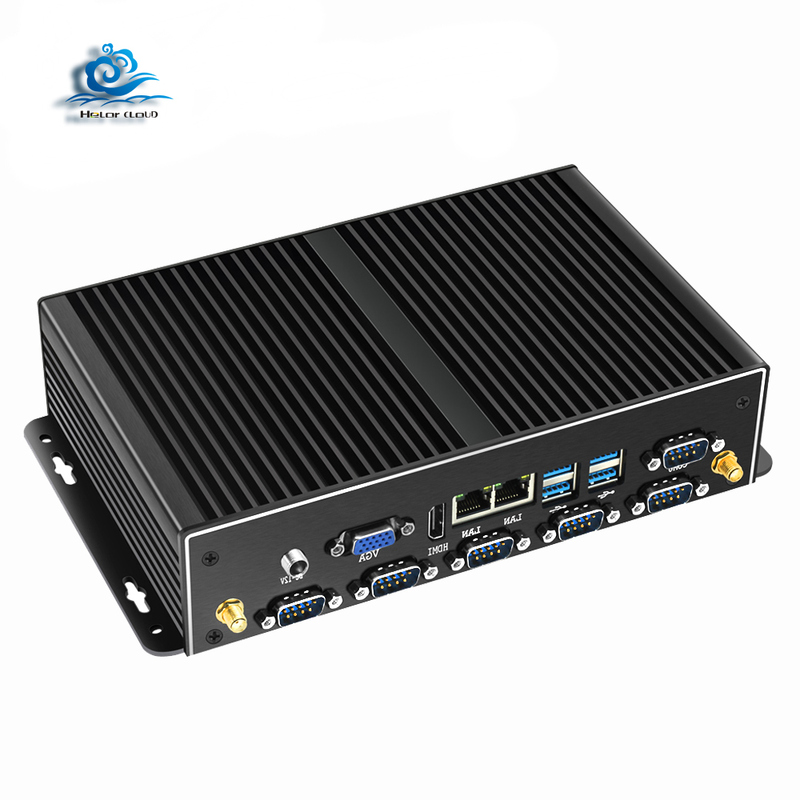

The HLY H26A industrial PC combines elegant design with robust performance. Featuring a brushed aluminum front panel with 4 USB 2.0 ports and audio jacks, this fanless system offers dual Gigabit Ethernet, 6 RS232/485 ports, and 8 USB ports (4x USB 3.0) for maximum connectivity.

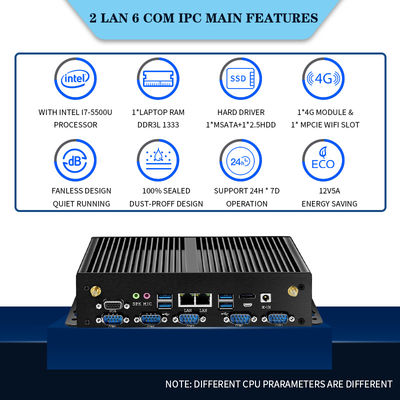

Key Features

Multiple CPU options: Celeron-J1900, Celeron-2955U, i5-4200U, i7-4500U, i7-5500U
Integrated GPU: HD Graphics (J1900/2955U/3805U), HD Graphics 4400 (i5/i7), HD Graphics 5500 (i7-5500U)
1 DDR3L RAM slot (1.35V low voltage) supporting 4GB or 8GB configurations
Dual storage support: mSATA SSD + 2.5" SATA HDD/SSD (30GB-1TB options available)
Optional mPCIe WiFi 802.11ac + Bluetooth 4.0 module
6 COM ports: 4x RS232 + 2x RS232/RS485
Fanless cooling system for silent operation
OS Support: Windows 7/8/10, Ubuntu, Linux, CentOS

Technical Specifications

Category	Details
Processor Options	Intel Core i7-5500U (2.4GHz, 4M Cache, up to 3.0GHz) Intel Core i7-4500U (2.4GHz, 4M Cache, up to 3.0GHz) Intel Core i5-4200U (1.6GHz, 3M Cache, up to 2.6GHz) Intel Celeron J1900 (2.0GHz, 2M Cache, up to 2.42GHz)
Memory	1 x DDR3L SODIMM slot (1.35V), supports 4GB/8GB RAM
Storage	mSATA + 2.5" SATA bay (30GB-1TB SSD/HDD options)
Graphics	Intel HD Graphics (model varies by CPU)

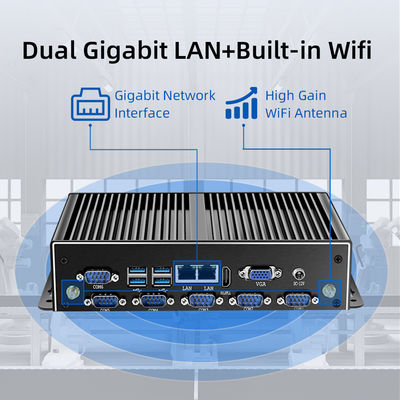

Networking	Dual Gigabit Ethernet (Intel 211AT), optional WiFi 802.11ac
Ports	4x USB 2.0, 4x USB 3.0 1x VGA, 1x HDMI 2x RJ45 LAN 4x RS232, 2x RS232/RS485 Audio: MIC/SPK
Power	12V DC input, 5A adapter (multiple plug options available)
Operating Conditions	-20°C to 80°C operating temperature, 10-90% humidity
Dimensions	235 x 137 x 51mm (9.25" x 5.4" x 2")

Package Contents

1 x Mini PC
1 x User manual
1 x VESA mount (pre-installed)
1 x WiFi antenna (except barebone models)
1 x SATA power and data cable

Shipping & Payment

Payment Methods: L/C, DA, DP, T/T, Western Union, Alibaba Trade Assurance

Shipping Options: DHL, FedEx, Aramex, Post, RETS Express, Alibaba Shipping

Frequently Asked Questions

Q: How is the performance of this fanless industrial PC?

A: Our mini PC uses Intel's latest low-power CPUs with excellent performance for office applications, multimedia, and light gaming. The fanless design ensures silent operation with reliable thermal management.

Q: Can it operate 24/7 in industrial environments?

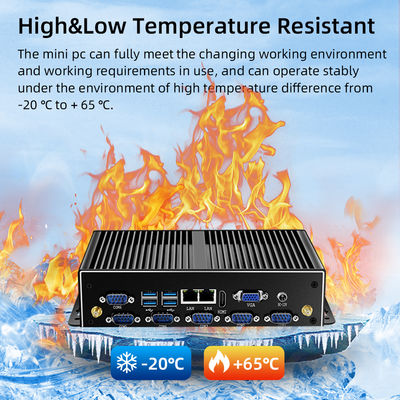

A: Yes, the H26A is designed for continuous operation with a wide temperature range (-20°C to 80°C) and industrial-grade components. Each unit undergoes 72-hour burn-in testing before shipment.

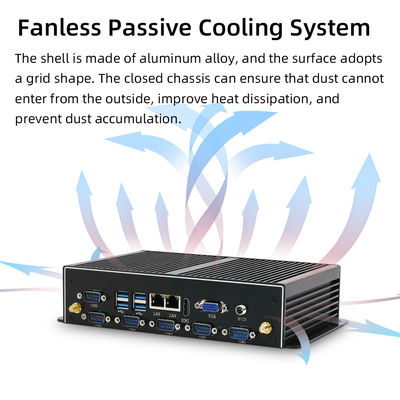

Q: What are the advantages of fanless design?

A: Fanless operation eliminates noise, reduces dust accumulation, and increases reliability by removing moving parts. The aluminum chassis acts as a heatsink for efficient thermal dissipation.

About HLY Industrial Computers

Shenzhen Helor Cloud Computer Co., Ltd (HLY) specializes in industrial mini PCs since 2013. With our own motherboard manufacturing facility, we've developed over 50 proprietary products serving AI, industrial automation, transportation, and digital signage applications worldwide.

Our Services

1-year warranty with extended repair service
Sample units available for testing
OEM/ODM customization services
24/7 technical support
Long-term reliable supply

Markeringen:

Industrieel Mini Computer

Industriële PC zonder ventilator

Mini PC zonder ventilator
