Industrial Mini PC with In-tel Celeron G6900 Processor Dual LAN Ports Six COM Ports and Two SATA Interfaces In-tel Celeron SATA Interfaces industrial pc mini pc

Name: Industrial Mini PC with In-tel Celeron G6900 Processor Dual LAN Ports Six COM Ports and Two SATA Interfaces In-tel Celeron SATA Interfaces industrial pc mini pc
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: G6900
Price: 143.6 USD
Availability: InStock

Merknaam:	Helor PC
Modelnummer:	G6900
MOQ:	1 stuk
Prijs:	143.6usd
Levertijd:	7-15 werkdagen
Betalingsvoorwaarden:	L/C, D/A, D/P, T/T, Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Ce, Rohs, Sgs

Verwerker:

Intel Celeron G6900

Geheugen:

2*SO-DIMM DDR4 3200MHz *2, tot 64GB ondersteund

Harde schijf:

2*SATA 3.0 / 1*M.2 2280/2240, ondersteunt adaptieve NVME en SATA

Netwerk:

2*Realtek Gigabit Ethernet-NIC

Audio:

Ingebouwde ALC897, 6-kanaals high-definition audiocontroller

Weergave:

Ondersteunt synchrone/asynchrone drievoudige weergave (HD-MI, VGA, ingebouwde LVDS)

Bedrijfstemperatuur:

-10°C ~ +60°C

Andere functies:

Watchdog-functie / Wake-on-LAN / PXE-ondersteuning

Verpakking Details:

Kartonnen doos

Levering vermogen:

50.000 stuks

Productbeschrijving

Industrial Mini PC with In-tel Celeron G6900 Processor Dual LAN Ports Six COM Ports and Two SATA Interfaces In-tel Celeron SATA Interfaces industrial pc mini pc

Industrial Mini PC with In-tel Celeron G6900 Processor Product Description

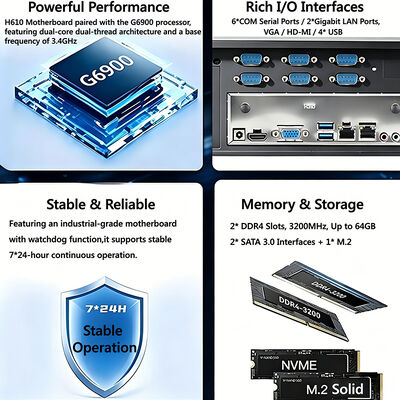

This industrial mini PC is equipped with an In-tel Celeron G6900 processor, supporting dual‑channel 3200MHz DDR4 SO‑DIMM memory with
a maximum capacity of 64GB. For display output, it features VGA/DP, LVDS/eDP, and HD-MI/Dual‑layer HD-MI interfaces, enabling synchronous
and asynchronous triple‑display operation. It comes with 2 Realtek Gigabit Ethernet ports, 1 M.2 Key‑M slot for adaptive NVMe/SATA SSD,
1 Mini‑PCIe slot (for WIFI/4G), 1 PCIe 4.0 ×4 slot, and up to 9 USB ports.
It is built‑in with 6 RS232 serial ports, 4 of which support RS485 communication.

Industrial Mini PC with In-tel Celeron G6900 Processor Specifications

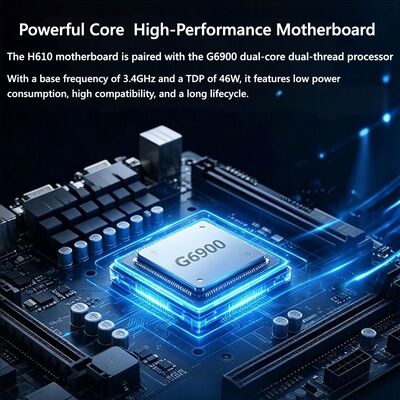

Processor	H610 Motherboard + Intel Celeron G6900 Processor (Dual‑Core Dual‑Thread, Base Frequency: 3.4GHz)
Memory	2SO‑DIMM DDR4 3200MHz 2, up to 64GB supported
Hard Disk	2SATA 3.0 / 1M.2 2280/2240, supporting adaptive NVME and SATA
Network	2*Realtek Gigabit Ethernet NIC
Audio	Onboard ALC897,6-channel High-Definition Audio Controller
Display	Supports synchronous/asynchronous triple display (HD-MI, VGA, onboard LVDS)

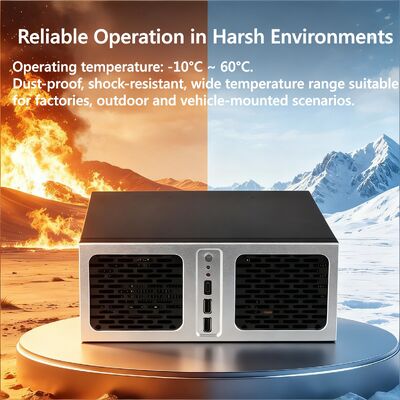

Operating Environment	-10°C ~ +60°C
Other Functions	Watchdog function / Wake-on-LAN / PXE support

Industrial Mini PC with In-tel Celeron G6900 Processor Product Details

This industrial mini PC adopts an industrial ITX motherboard, supporting 12th, 13th and 14th Gen Intel LGA1700 Pentium, Celeron, Core i3, i5 and i7 processors.

Industrial Mini PC with In-tel Celeron G6900 Processor Dual LAN Ports Six COM Ports and Two SATA Interfaces In-tel Celeron SATA Interfaces industrial pc mini pc 0

Industrial Mini PC with In-tel Celeron G6900 Processor Application Scenarios

This industrial mini PC features wide compatibility and is widely applied in commercial displays, machine vision, medical instruments, industrial
control, financial equipment, cloud terminals and other fields.

Industrial Mini PC with In-tel Celeron G6900 Processor Dual LAN Ports Six COM Ports and Two SATA Interfaces In-tel Celeron SATA Interfaces industrial pc mini pc 1

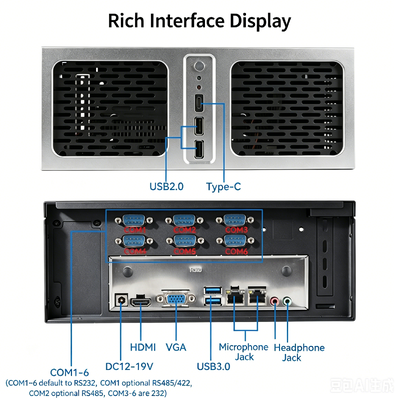

Industrial Mini PC with In-tel Celeron G6900 Processor Interface Description

Equipped with abundant expansion interfaces to meet diverse industrial requirements.Front panel: Power switch, USB 2.0 port, function button.

Rear panel: COM-RS232 serial ports (COM1 optional for RS485/422, COM2 optional for RS485), HD-MI, VGA, 12V DC power port, USB 3.0, Gigabit Ethernet port, audio input and audio output.

Industrial Mini PC with In-tel Celeron G6900 Processor Dual LAN Ports Six COM Ports and Two SATA Interfaces In-tel Celeron SATA Interfaces industrial pc mini pc 2
