Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC

Name: Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X31 i7 4500U
Price: 179.10 USD
Availability: InStock

Merknaam:	Helor PC
Modelnummer:	X31 i7 4500U
MOQ:	1 stuk
Prijs:	$134.1-$224.7, Negotiable
Leveringstermijn:	7-15 werkdagen
Betalingsvoorwaarden:	T/T, L/C, D/A, D/P, Western Union, MoneyGram

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

Ce, Rohs, Sgs

Verwerker:

Compatibel met Intel Celeron, Pentium, Core i3/I5/I7 Haswell/Broadwell Series Processors

Geheugen:

1 × SO - DIMM Memory Slot, ondersteunend single - channel 1600/1333MHz DDR3L 1.35V geheugen, maximal

Maat:

120 mm × 120 mm

Netwerk:

2 × realtek RTL8111H Gigabit -netwerkkaarten (1 netwerkwake - op - LAN), ondersteuning Netwerk Wake

Opslag:

1 × 7PIN SATA3.0 HARDE DISK PORT, TRANSMISSIESNELHEID TOT 6 GBPS, 1 × MSATA3.0 SLOT

Systeem:

Windows 7/Windows 10/Linux

Weergave:

Integrated Intel HD Graphics 4400 Core grafische kaart, 1 × VGA -poort en 1 × HDMI -displaypoort, on

Uitbreiding:

1 × Mini - PCIe Slot, Support WiFi/4G -module

Bedrijfstemperatuur:

0 ° C ~ 20 ° C

Opslagtemperatuur:

-20 ° C ~ 70 ° C

Verpakking Details:

Karton doos

Levering vermogen:

50000 stuks

Markeren:

Intel Core i7 industrial mini PC

fanless PC with dual LAN

mini PC with 4 USB3.0

Productomschrijving

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Description:

The industrial mini PC features an Intel Core i5 - 5200U processor. It has one 204 - pin DDR3 SO - DIMM slot (up to 8GB), one mPCIe slot (for WIFI/4G), and one mSATA + one 12 - pin SATA for storage. It includes dual LAN ports, six COM ports, and six USB ports (4 USB 3.0, 2 USB 2.0). The device supports VGA and HDMI for dual - screen sync, an ALC897 audio codec, and Realtek 8111H Gigabit NICs. Powered by DC4 - pin ATX, it operates in temperatures from 0°C to 20°C and humidity from 5% - 95%, supporting Windows 7/10 and Linux. It has 2 cores, 4 processing threads, and a turbo frequency of 2.7GHz.

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Specification:

Processor	Compatible with Intel Celeron, Pentium, Core i3/i5/i7 Haswell/Broadwell series processors
Memory	1×SO - DIMM memory slot, supporting single - channel 1600/1333MHz DDR3L 1.35V memory, maximum support 8GB
Size	120mm × 120mm
Network	2×Realtek RTL8111H Gigabit network cards (1 network wake - on - lan), support network wake - up/PXE
Storage	1×7pin SATA3.0 hard disk port, transmission speed up to 6Gbps,1×mSATA3.0 slot
System	Windows 7/Windows 10/Linux
Display	Integrated Intel HD Graphics 4400 core graphics card,1×VGA port and 1×HDMI display port,Support VGA and HDMI synchronous/asynchronous display
Expansion	1×Mini - PCIe slot, support WIFI/4G module
Suitable Temperature	Operation Temperature:0°C ~ 20°C

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Details:

This industrial mini PC is designed with a high configuration to meet diverse industrial needs. It features the Intel Core i5 - 5200U processor, with 2 cores and 4 threads, and a maximum turbo boost frequency of 2.7GHz. The device also includes dual LAN ports and six COM ports, making it ideal for applications requiring reliable performance and extensive connectivity options.

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC 0

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Appliance:

Our Industrial Mini PC is applicable for versatile serving numerous application scenarios. It excels in intelligent manufacturing, petroleum and petrochemical, industrial automation, financial institutions, power industry, and transportation industry. In industrial settings, it supports digital signage, multimedia education, turnstile access control systems, and express pickup lockers, offering reliable performance across various sectors.

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC 1

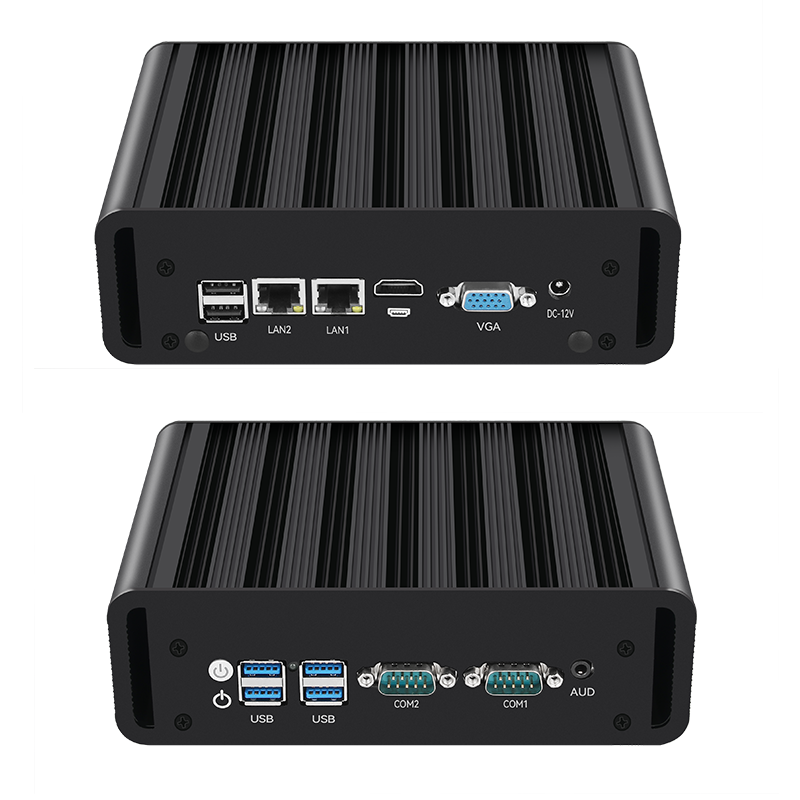

Intel Core i7 4500U Dual LAN Dual COM 6 USB Industrial Mini PC Interfaces:

This industrial mini PC is equipped with a wide range of interfaces to meet diverse connection needs. One side includes USB 2.0, 2.5G network ports (LAN1 and LAN2), an HDMI interface, a VGA interface, and a DC - IN power interface. The other side features a power button, USB 3.0 ports, DB9 - RS232/485 serial ports (COM1 and COM2), and an audio input/output interface. These interfaces ensure seamless connectivity with various peripheral devices and facilitate data transmission and interaction in industrial settings.

Intel Core i7 4500U PC With Dual LAN Dual COM and 4 USB3.0 Industrial Mini PC 2
